ICOOH E36 330mm Rear BBK

Availability: In Stock

$1,445.00

Quantity :

Description
Reviews

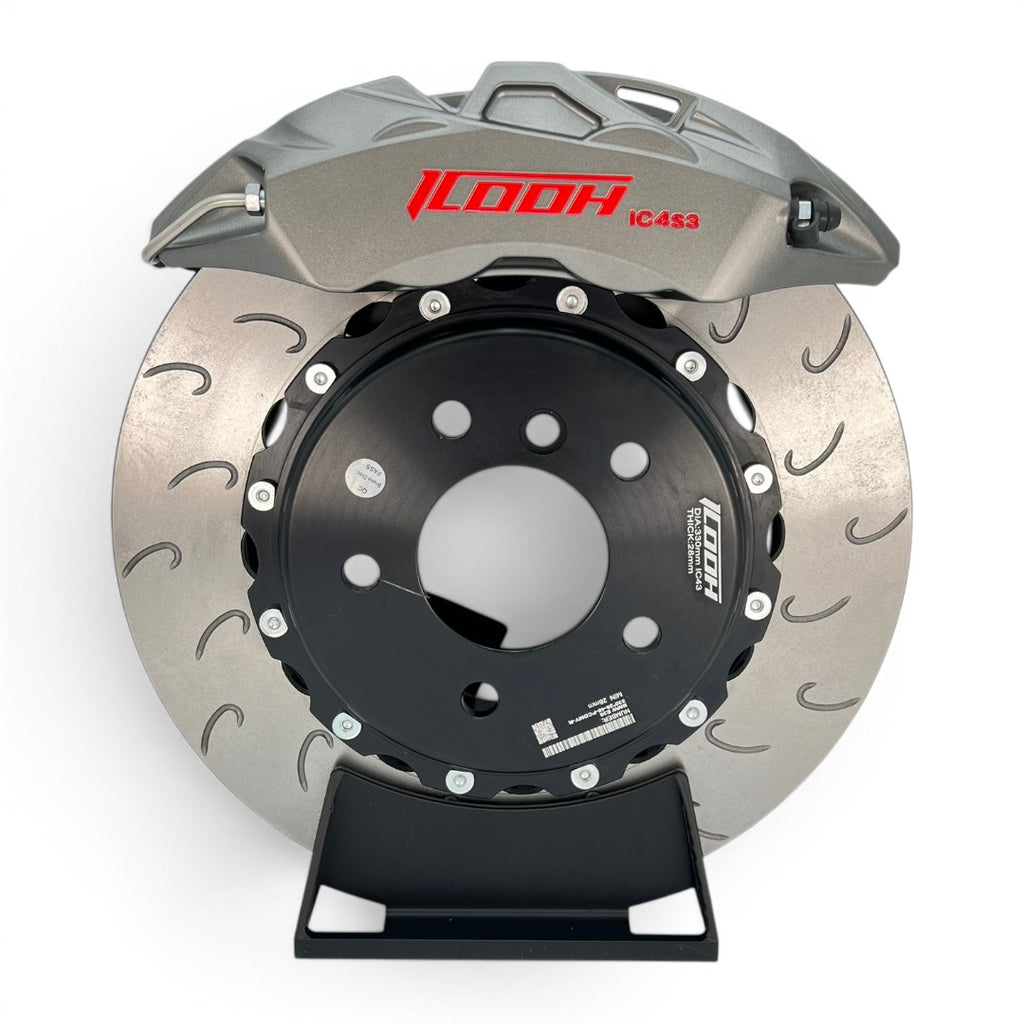

This is a 330mm, 4-piston brake kit made for Rally Road by ICOOH brakes for the E36 318/325/328 models.

The 4-piston IC4 model caliper is a two piece forged design with stainless steel crossover pipe and fasteners. It's optimized for light weight while providing enough strength to be used on the front axle for other vehicle applications.

Correct 161mm diameter rear parking brake. 330mm x 28mm Semi-Floating Rotors. We specified semi-floating rear rotors on all of our kits. Because the rear rotors don't see as much heat as the front rotors, the semi-floating design allows for expansion while still keeping noise and cost in check. The hardware used is Brembo bobbin type in stainless steel.

Here's what comes with the kit:

7075 Billet Aluminum Brackets.
(2) 4-Piston IC4 Calipers.
(2) 330mm x 28mm 2-Piece Semi Floating Rotors (Correct 161mm park brake)
Brake Pads for IC4 calipers - Street Compound (installed).
Stainless Braided Brake Lines.
All Required Mounting Hardware (fasteners)
