Rally Road E36 BMW Dual Fuel Pump Hanger

Availability: In Stock

$299.95

Quantity :

Back in stock on February 1, 2021.

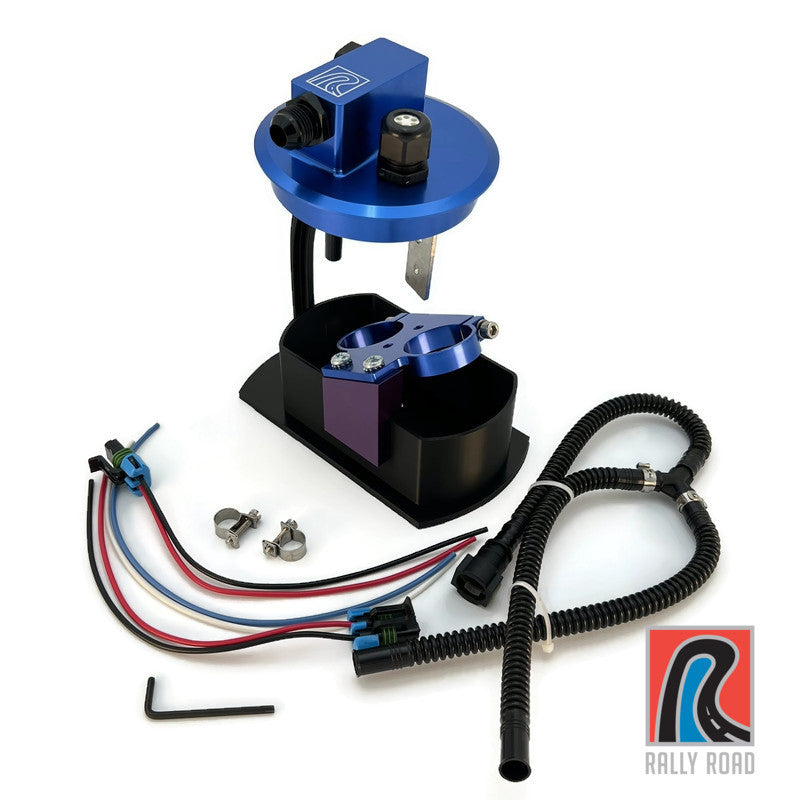

Rally Road has re-designed their Dual Fuel Pump Hanger for the E36 BMW. The cap is machined from a piece of billet aluminum.

Allows for attachment of single feed and return lines when creating a custom fuel system. Retains factory fuel level sensor. Includes sealed wire pass-thru for pump and level sensor wiring. Some wiring modifications will be required.

The hose assembly is made specific for the Walbro 485 series of pumps, but the braket will hold any combination of standard body fuel pumps up to 39mm diameter. Aeromotive 340, Walbro 255, Walbro 400, Walbro 485, HFP 340, etc.

This dual pump hanger has been proven on many high horsepower cars making between 700 and 1,000 rwhp.

Included in kit:
Billet lid with -8 orb ports and quick connect for Y-hose
8AN Male Fitting
8AN Plug
6 Wire Liquid Tight Pass-Thru
6 Pieces Multi Color Wire
Y-Hose with quick connect
Custom Quick Connect -8 ORB Fitting
Sump Locating Bracket with (2) set screws
Dual Pump Clamp Bracket with integrated sump mount

*Fuel Pumps Not Included

Click Here to Download Instructions
